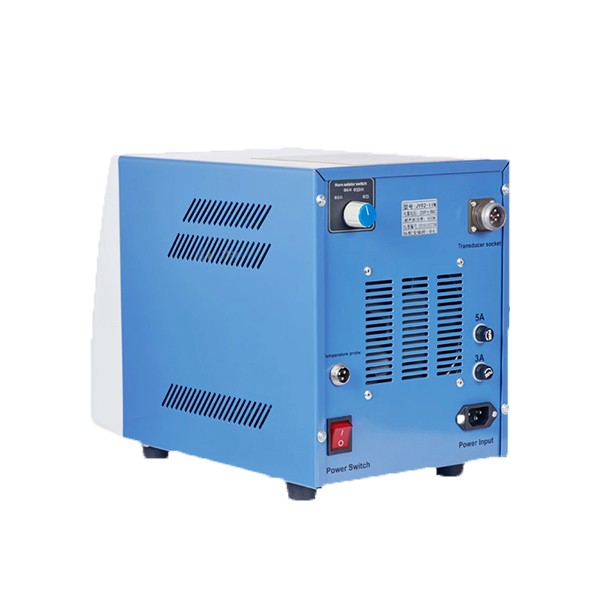

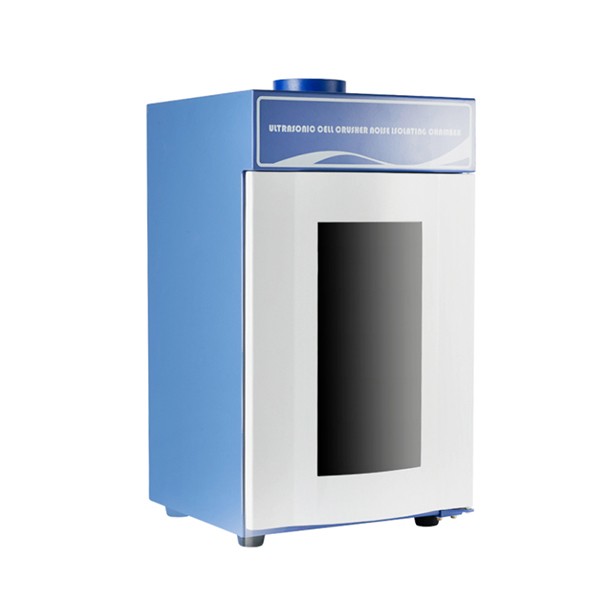

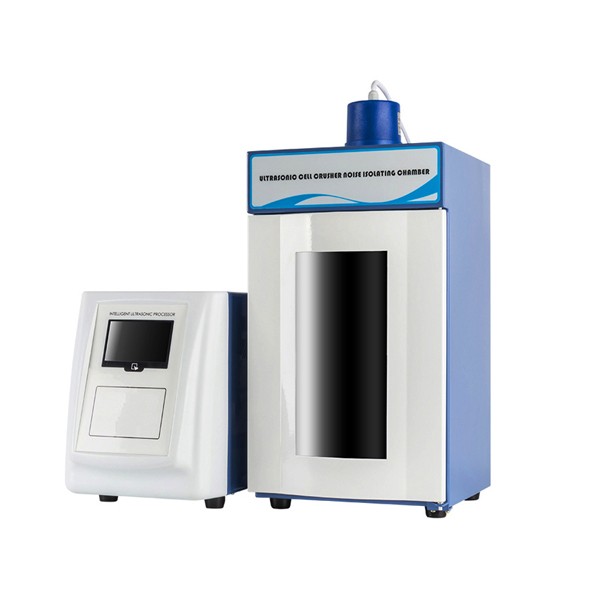

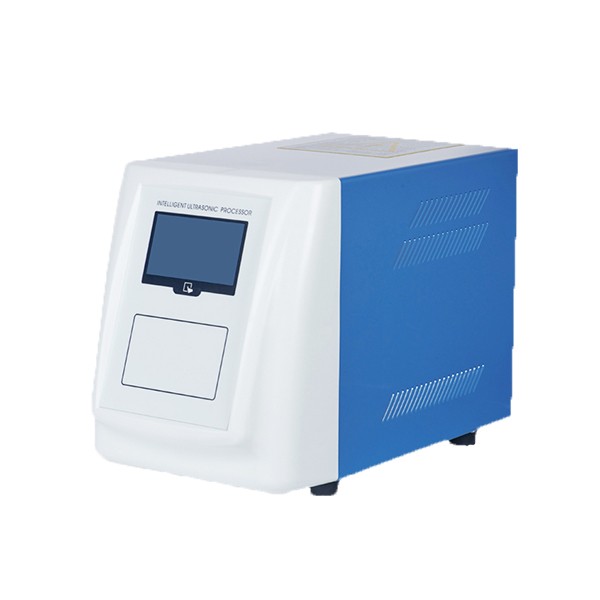

Probe Sonicator

Probe Sonicator

Model

JY96-IIN/150Y

JY88-IIN/250Y

JY92-IIN/650Y

Power ratio

1.5-150W adjustable

2.5-250W (Adjustable)

6.5-650W (Adjustable)

Crushing capacity

0.1-150ML(according to the horn)

0.1-300ML(need to match the   corresponding horn)

0.1-500ML(need to match the   corresponding horn)

Display method

4.3 inch touch screen

4.3 inch touch screen

4.3 inch touch screen

Single ultrasound time

0.1-99.9S

0.1-99.9S

0.1-99.9S

Single gap time

0.1-99.9S

0.1-99.9S

0.1-99.9S

Total time (ultrasound + gap)

1-99H59M59S

1-99H59M59S

1-99H59M59S

Frequency Range

20-25KHz

20-25KHz

20-25KHz

Temperature control range

0-100℃(option Low temperature thermostat)

0-100℃(option Low temperature thermostat)

0-100℃(option Low temperature thermostat)

Alarm function

Time, overload, no load, over   temperature

Time, overload, no load, over   temperature

Time, overload, no load, over   temperature

Random horm

Φ6(mm)

Φ6(mm)

Φ6(mm)

Optional horn

Φ2、3、8、10(mm)

Φ2、3、8、10(mm)

Φ2、3、10、12(mm)

Data storage

20 groups

20 groups

20 groups

power supply(optional 110V)

220V/110V/ 50Hz/60HZ

220V/110V/ 50Hz/60HZ

220V/110V/ 50Hz/60HZ

Net Size (L*W*H)

410*225*290(mm)

410*225*290(mm)

410*225*290(mm)

Net Weight Controller

12kg

12kg

12kg

Gross Weight Controller

16kg

16kg

16kg

Packaging Size

470*305*430(mm)

470*305*430(mm)

470*305*430(mm)

Soundproof box gross weight

10kg

10kg

10kg

packing of soundproof box

 (L * W *H)

350*350*550(mm)

350*350*550(mm)

350*350*550(mm)

Voice alarm and prompt function

Yes

Yes

Yes

Continuous ultrasound function

No

No

No

Model

JY92-IIDN/900Y

JY98-IIIDN/1200Y

JY99-IIDN/1800Y

Power ratio

9-900W adjustable

12-1200W adjustable

18-1800W adjustable

Crushing capacity

0.1-600ML(according to the horn)

1-1000ML(according to the horn)

1-1200ML(according to the horn)

Display method

4.3 inch touch screen

4.3 inch touch screen

4.3 inch TFT

Single ultrasound time

0.1-99.9S

0.1-99.9S

0.1-99.9S

Single gap time

0.1-99.9S

0.1-99.9S

0.1-99.9S

Total time (ultrasound + gap)

1-99H59M59S

1-99H59M59S

1-99H59M59S

Frequency Range

20-25KHz

20-25KHz

20-25KHz

Temperature control range

0-100℃(option Low temperature thermostat)

0-100℃(option Low temperature thermostat)

0-100℃(Thermostatic bath can be selected)

Alarm function

Time, overload, no load, over   temperature

Time, overload, no load, over   temperature

Temperature,   power, time, overload,etc.

Random horm

Φ6(mm)

Φ6(mm)

Φ6(mm)

Optional horn

Φ2、3、10、12、15(mm)

Φ3、6、10、15、22、25(mm)

Φ3、6、10、15、20、25、28(mm)

Data storage

20 groups

20 groups

20 groups

power supply(optional 110V)

220V/110V/ 50Hz/60HZ

220V/110V/ 50Hz/60HZ

220V/110V/   50Hz/60HZ

Net Size (L*W*H)

410*225*290(mm)

410*225*290(mm)

410*225*290(mm)

N.W Controller

12kg

12kg

12kg

G.W Controller

16kg

16kg

16kg

Packaging Size

470*305*430(mm)

470*305*430(mm)

470*305*430(mm)

Soundproof box gross weight

10kg

10kg

10kg

packing of soundproof box

 (L * W *H)

350*350*550(mm)

350*350*550(mm)

350*350*550(mm)

Voice alarm and prompt function

Yes

Yes

Yes

Continuous ultrasound function

No

No

No
