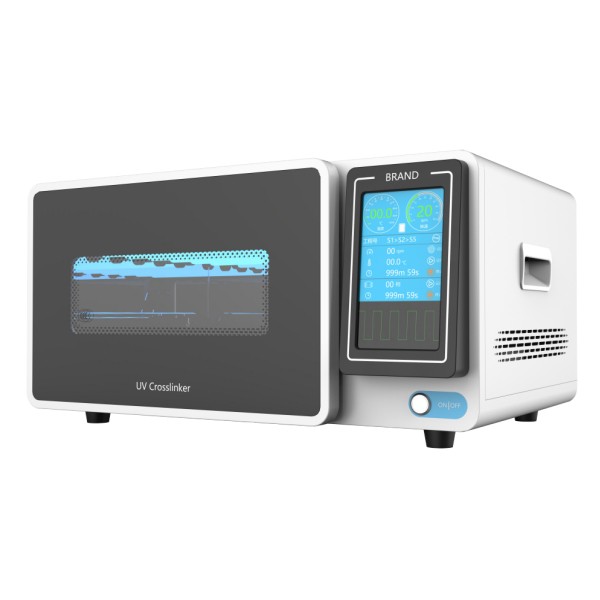

UV Crosslinker

Functions and features

*To immobilize nucleic acids on membranes, the traditional method involves placing the membrane in a vacuum oven at 80°C for 2 hours. Alternatively, using a UV cross-linker, the membrane can be exposed to 254nm UV light for just a few seconds. The microprocessor controls the precise UV dosage, allowing nucleic acids to be immobilized on hybridization membranes within 30-60 seconds

* UV irradiation can increase hybridization signals by 5-10 times compared to traditional baking methods. Since the UV crosslinker is equipped with a UV energy program design system (Joules/cm²), which continuously monitors UV light exposure via a time integrator, the irradiation automatically stops when the absorbed energy reaches the set value. Therefore, regardless of the intensity of the UV light source or time differences, the irradiation cycle maintains excellent reproducibility.

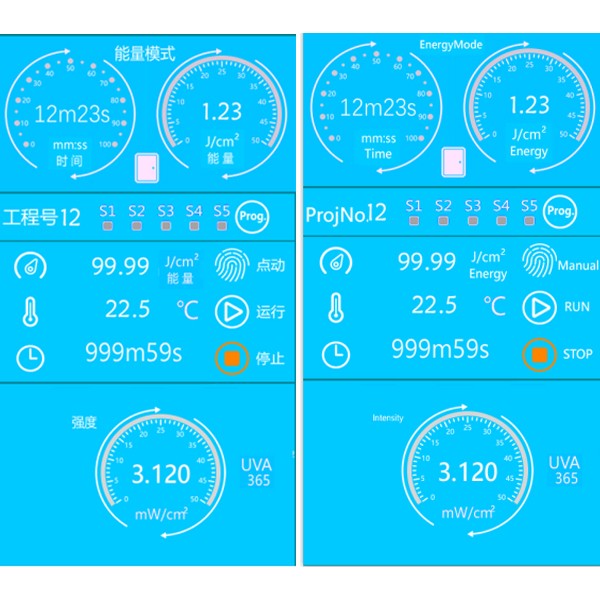

*7-inch large touch screen display and operation, with optional UV energy mode or time mode. 3 different wavelengths available

*UV shielding window and safety door sensor design ensures user safety

*Large stainless steel UV exposure chamber with drawer-style design. Automatically saves power-off information and can store 50 sets of data.

Main technical parameters

Model: UV07-IN

UV wavelength standard 254nm (optional 312nm or 365nm lamp tube according to user needs)

Exposure time: measurement range 0-999m59s

Exposure energy: measurement range 0-99.99J (joules)

UV radiation energy:up to 5mw/cm ²

UV light sources:6 10W

50 sets of exposure energy and exposure time storage can be manually set

Control interface: 7-inch TFT touch screen

Switch 3 different wavelengths 254nm/312nm/365nm (ABC full band)

The jog test mode has

There are open/close door sensing modes available

The power-off information is saved

The function of switching between Chinese and English during startup is available

The internal calibration function includes

Automatic protection function automatically stops working when opening the door

Internal exposure chamber dimensions: L 34cm *W 26cm * H15cm

The dimensions of the instrument :L55cm  W38cm  H29cm

Net weight : 13KG

Power supply : 220V/50HZ/100W
